THX-8000-L
In-Wall Speaker
$2,199
Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, the THX-8000-L offers the ultimate performance in a hidden solution loudspeaker. It is designed for left, center or right channel use or wherever a monopole speaker is needed.
Features
Key Product Features
| 1” Titanium Dome Compression Driver mated to 80° x 80° Tractrix® Horn |
| 8” Aluminum Woofer |
| THX® Ultra2 Certified |
| Cinema Quality Sound |
| Maximum Installation Reliability |
| Unlimited Flexibility |

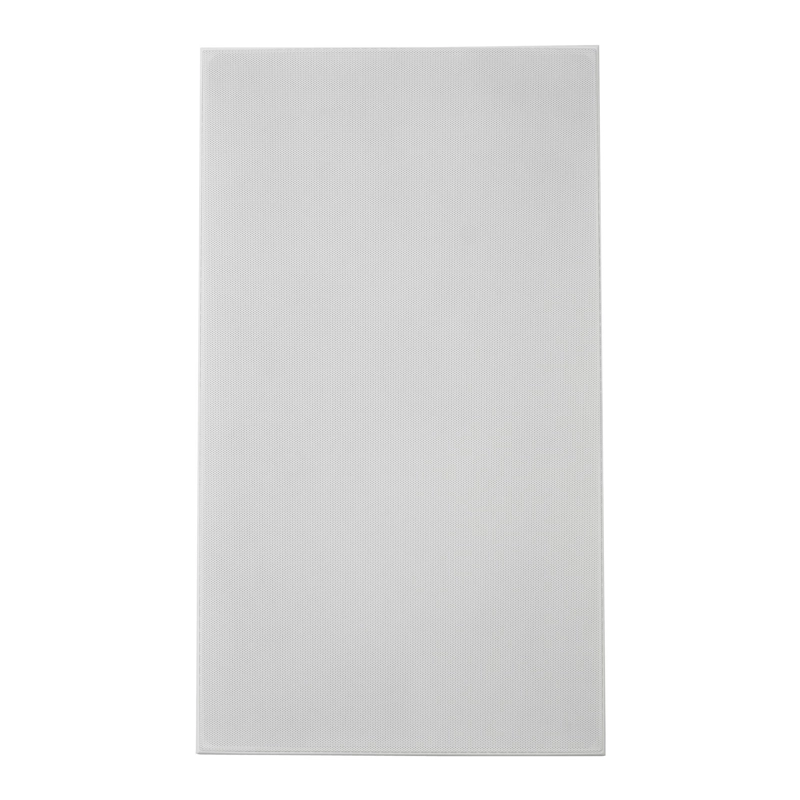

| Edge-to-Edge Grille |
Specifications
Key Product Specifications
| System Type | 2-way In-wall |
| Frequency Response | 80Hz-20kHz +/- 3dB |
| Power Handling | 150W/600W |
| Sensitivity | 91dB |
| Impedance | 8 Ohms |
| Crossover Frequency | 2300Hz |
| High Frequency Driver | 1” (2.5cm) Titanium dome compression driver mated to 80° x 80° Tractrix® Horn |
| Low Frequency Driver | 8” (20cm) Aluminum Cone Woofer |
| Enclosure Type | Sealed Enclosure |
| Hole dimensions (mm/in, HxWxD) | 19” (48.3cm) H x 10” (25.4cm) W |
| Product Dimensions | 20.63” (524 mm) H x 11.63” (295.4mm) W |
| Mounting Depth | 3.88” (98.55mm) |
| Weight | 17.5 lbs. (7.9kg) |
| Finish | White with Brushed Aluminum Facia |
| Installation Kit | IK-802-W |
| Cutout Dimensions | 10.12” (485.90mm) W X 19.13” (257.05mm) H |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
THX-8000-L Spec Sheet
.
