THX-504-L
In-Wall Speaker
$1,299
Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, Klipsch THX Select Certified In-Wall speakers offer the ultimate performance in a hidden solution loudspeaker.
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Features
Key Product Features
| 1" Titanium Diaphragm Compression Driver mated to a 90° x 90° square Tractrix® Horn |
| Four 5.25" Fiberglass Cone Woofers |
| THX Select Certified |
| Cinema Quality Sound |
| Maximum Installation Reliability |
| Unlimited Flexibility |

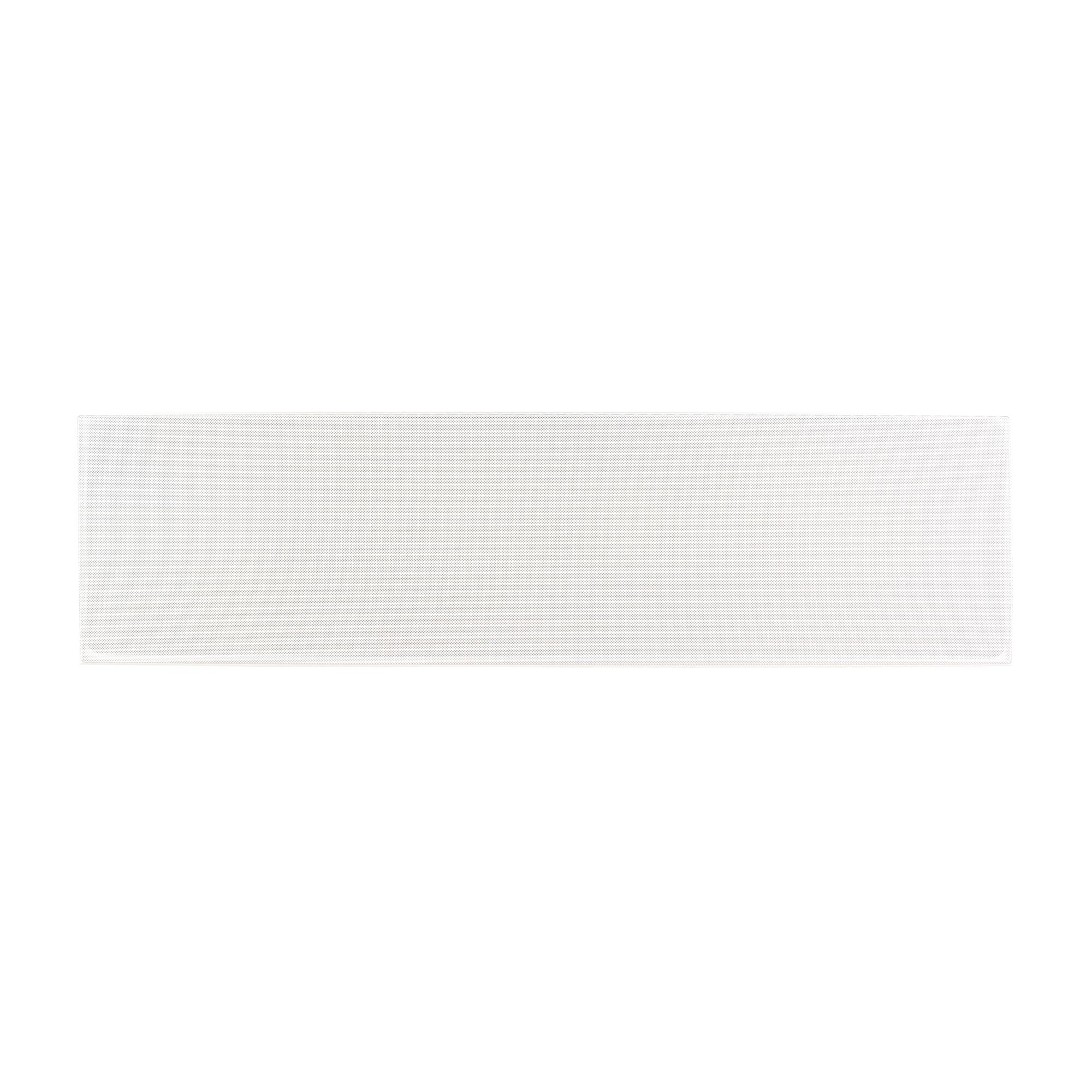

| Edge-to-Edge Grilles |
Specifications
Key Product Specifications
| System Type | 2-way In-wall |
| Frequency Response | 46 Hz - 20 kHz +/- 3dB |
| Power Handling | 150W/600W |
| Recommended Amp Power | 150W |
| Sensitivity | 92 dB |
| Impedance | 8 Ohms compatible |
| High Frequency Driver | 1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn |
| High Frequency Crossover | 250 Hz & 2100 Hz |
| Low Frequency Driver | Four 5.25” (13.3cm) high-output, fiberglass cone woofers |
| Speaker Enclosure | MDF & Aluminum motorboard /ABS frame |
| Enclosure Type | Infinite baffle, front flush with wall |
| Hole dimensions (mm/in, HxWxD) | 27.25” (69.2cm) H x 6.5” (16.5cm) W |
| Dimensions | 28.88” (733.55mm) H x 8.13” (206.50mm) W |
| Mounting Depth | 3.52” (89.41mm) |
| Weight | 18.3lbs (8.3kg) |
| Finish | White paintable grill |
| Installation Kit | IK-504-W |
| Cutout Dimensions | 27.24” (691.90mm) L X 6.5” (165.10mm) |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
THX-504-L Spec Sheet
.
