RP-5000C Piano Black

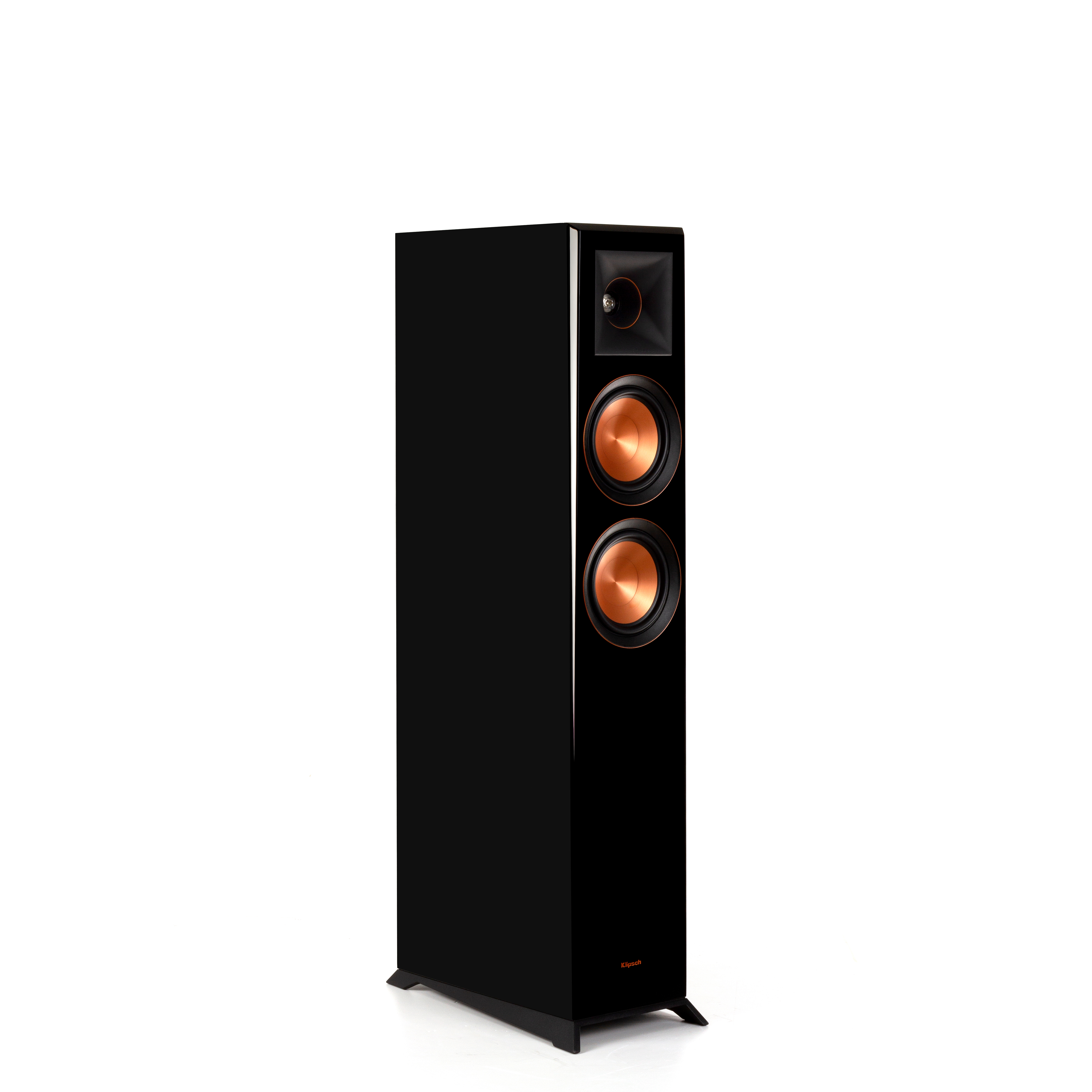

RP-5000F Floorstanding Speaker Piano Black

The Klipsch RP-5000F floorstanding speaker takes your movies and music to a new level. Featuring our proprietary hybrid Tractrix® horn-loaded technology and dual 5.25" spun copper Cerametallic™ woofers, this floorstanding speaker is the ideal home theater audio solution. Reference Premiere Piano Black speakers undergo a painstaking, three-layer paint and polish process that results in a deep, vivid reflection for a bold yet elegant finish.

RP Piano Sonic Style

SONIC STYLE

Drawing inspiration from the very instruments our speakers meticulously reproduce, the Klipsch Reference Premiere Piano Black series presents our high-performance speakers in an aesthetic that exhibits a bold and elegant audio centerpiece.

RP Piano True Finish

TRUE PIANO BLACK FINISH

Crafting this incredible finish for our most popular home theater speaker series requires a painstaking, three-coat paint and polish process. By delicately fabricating each layer, the result is a deep and vivid reflection that only a true piano black finish possesses. The luminous finish wraps around the entirety of the housing to provide an even reflection that gives the speaker an edgeless appearance from every angle.

RP Piano Horn

HYBRID TRACTRIX® HORN TECHNOLOGY

Klipsch proprietary Tractrix® horn loading technology ensures high-frequency energy of the Reference Premiere Piano Black series speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.

2018 Reference Premiere Horn Anatomy

HORN ANATOMY

Klipsch Reference Premiere series speakers feature a compressed molded silicon face that is matted to the 90° x 90° Tractrix horn to reduces horn resonance for smoother frequency response. Klipsch computer modeled phase plugs act as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

2018 Reference Premiere Tweeter 2

Vented Tweeter

A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction.

The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters.

Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.

A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

RP Piano Woofers

CERAMETALLIC™ WOOFERS

Klipsch proprietary Cerametallic™ woofers are the Reference Premiere Piano Black series signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.

2018 Reference Premiere Woofer

WOOFER ANATOMY

Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.

Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.

RP Piano Port Floorstanding 2

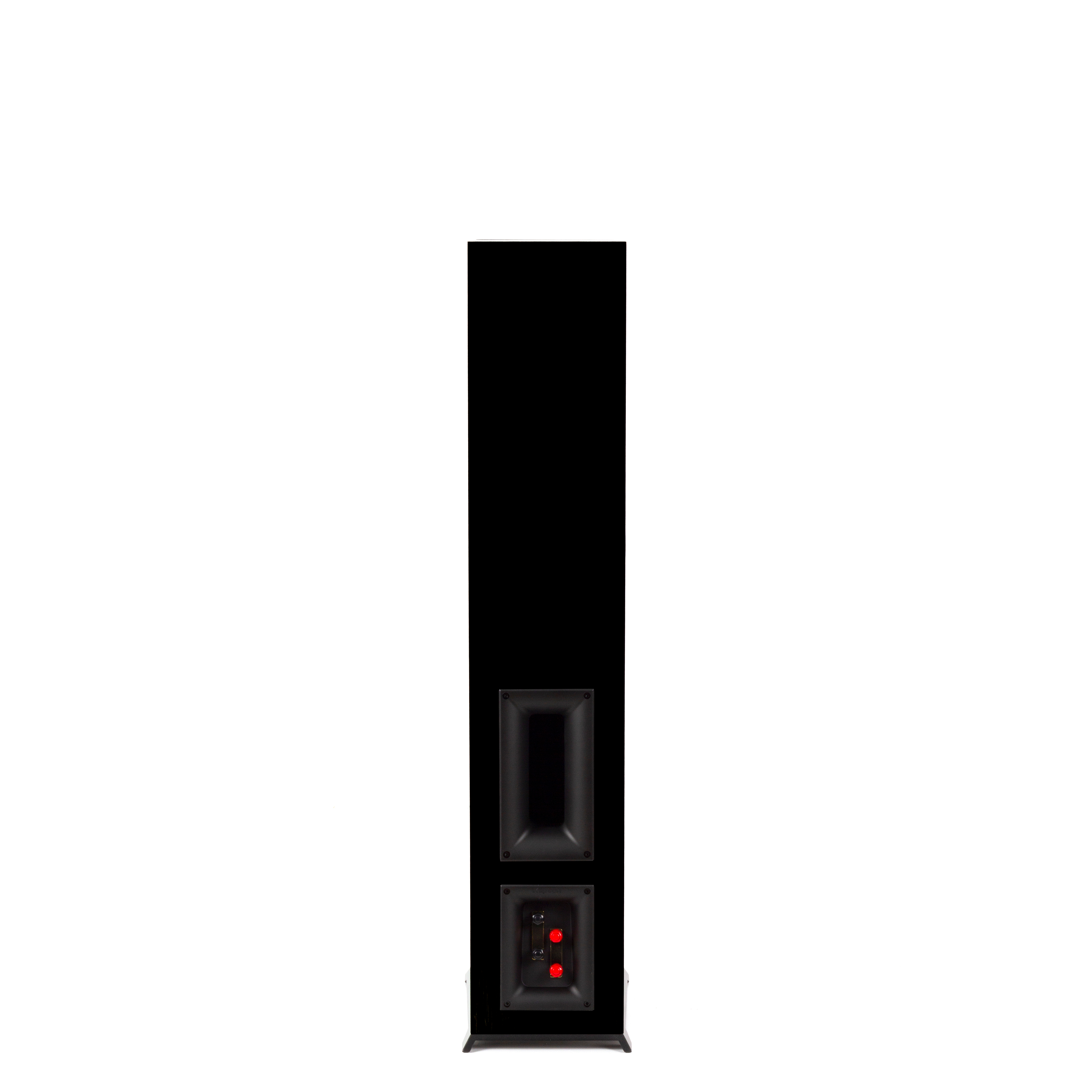

TRACTRIX® PORT + DUAL TERMINALS

The rear Tractrix port geometric design creates ideal airflow with minimal distortion or turbulence for clean, precise low frequency performance.

The Reference Premiere Piano Black series speaker features dual input terminals so you can bi-wire or bi-amp your speakers for a custom, high-performance experience.

RP Piano Finish

FINISHED TO PERFECTION

Copper trim rings around the tweeters and woofers accentuate the Reference Premiere series features and deliver a premium aesthetic.

Klipsch Reference Premiere Piano Black series floorstanding speakers boast cast aluminum feet for a modern look while reducing sonic resonance by minimizing floor contact for optimal acoustic performance.

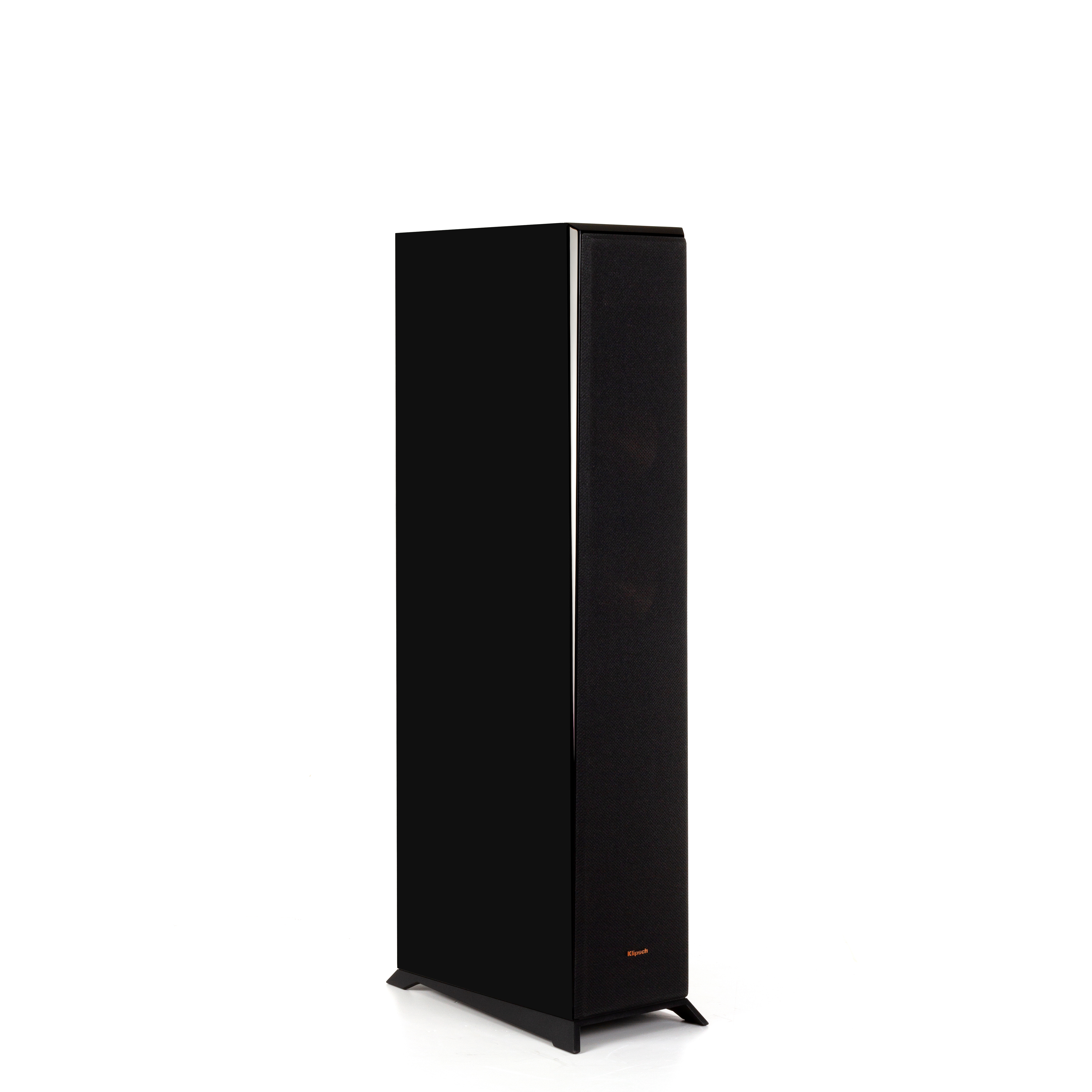

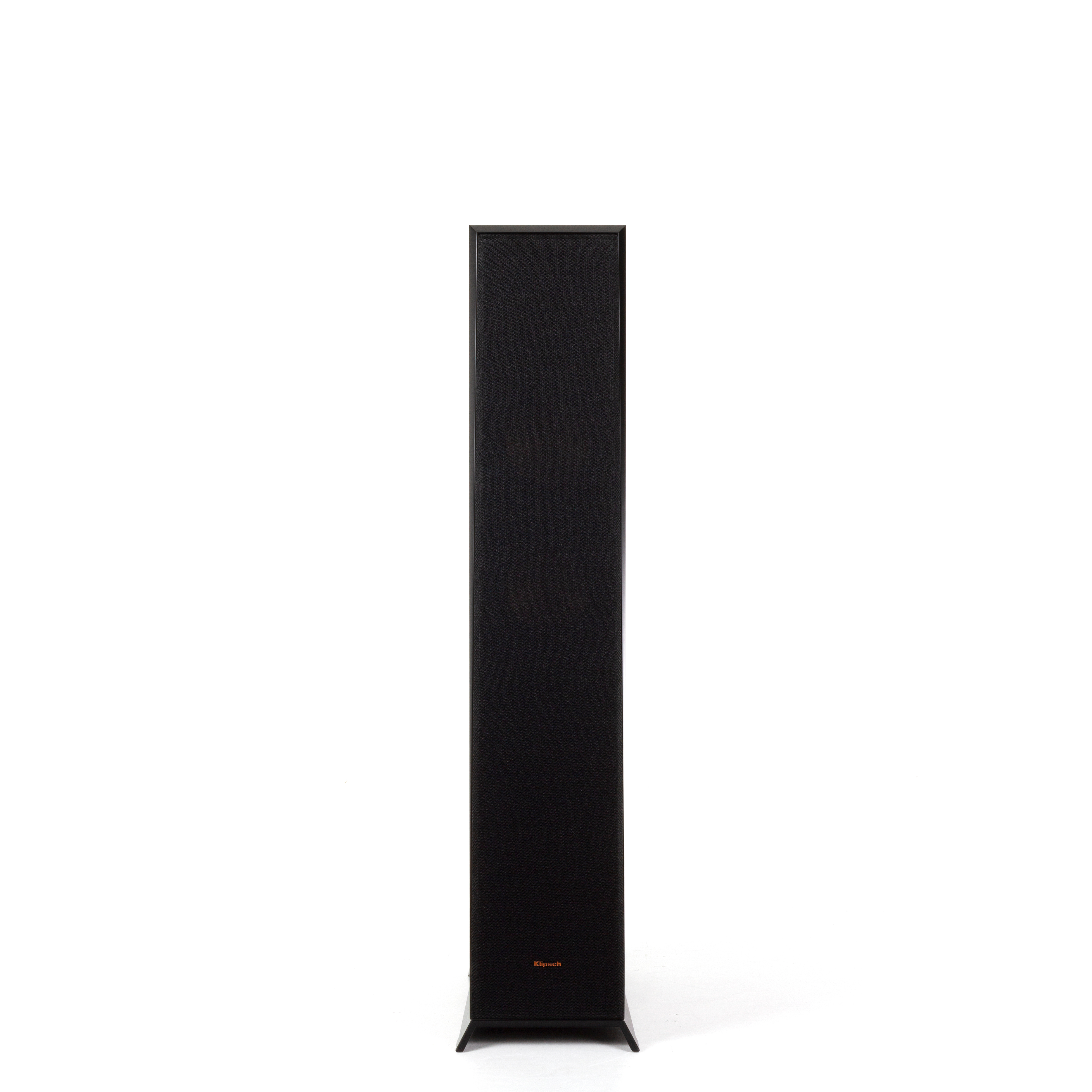

Strong, flexible, removable magnetic grilles provide further options - for both protection and style.

Features

Key Product Features

True Piano Black Finish
1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
Dual 5.25" Spun Copper Cerametallic™ Woofers
Bass-Reflex via Rear-Firing Tractrix® port
Dual binding posts for bi-wire/bi-amp
Strong, Flexible Removable Magnetic Grille
Dimensions: 36.12” x 8.21” x 14.38”



Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: RP 5000 F Spec Sheet v01 .

Product Manual

Download the Product Manual for RP-5000C Piano Black RP-5000F Floorstanding Speaker Piano Black here: Reference Premiere Speakers Manual .
