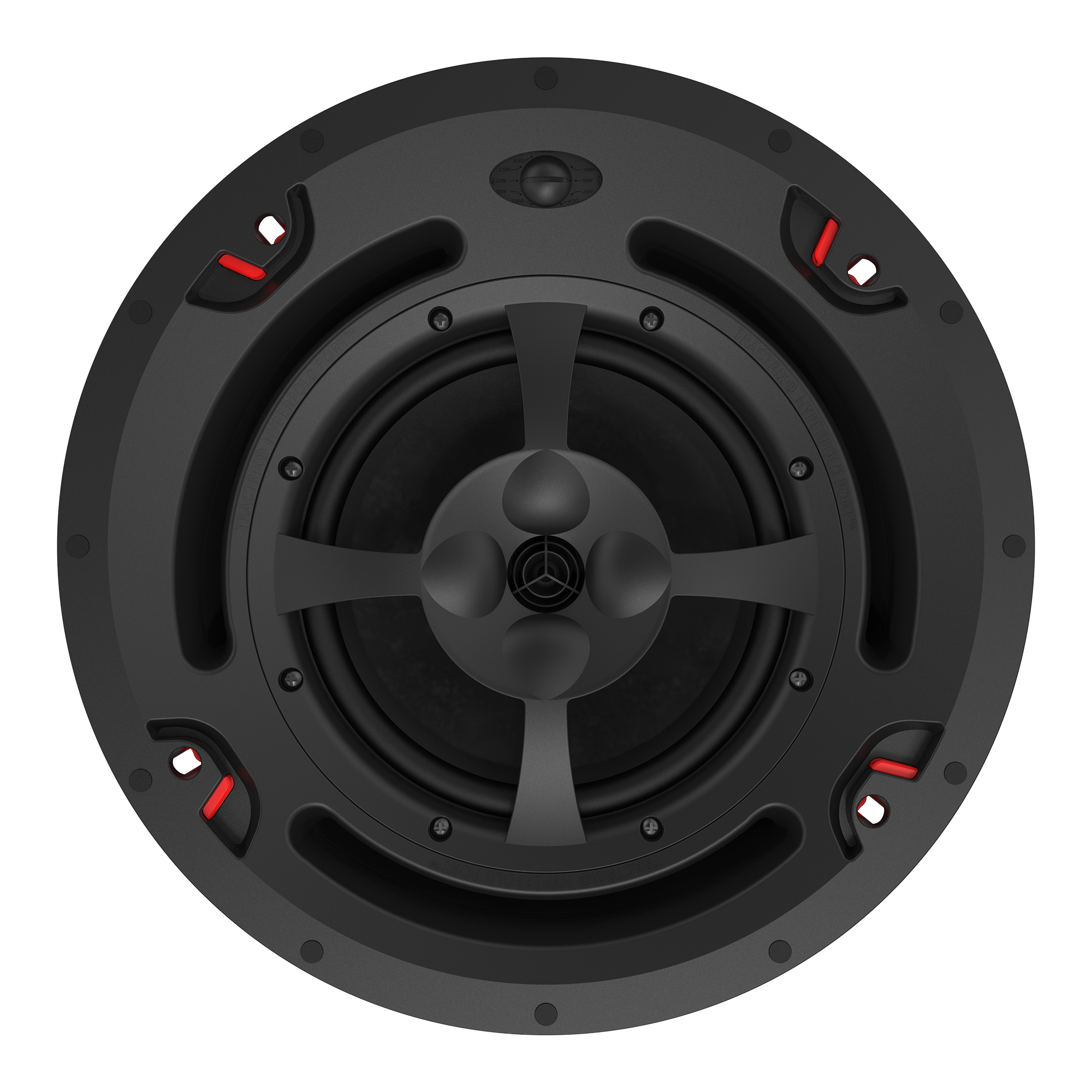

PIC-800-T
8” PROFESSIONAL IN-CEILING SPEAKER
Features:
- All-New Tractrix® Hyperfold™ Port
- 1” Titanium compression driver

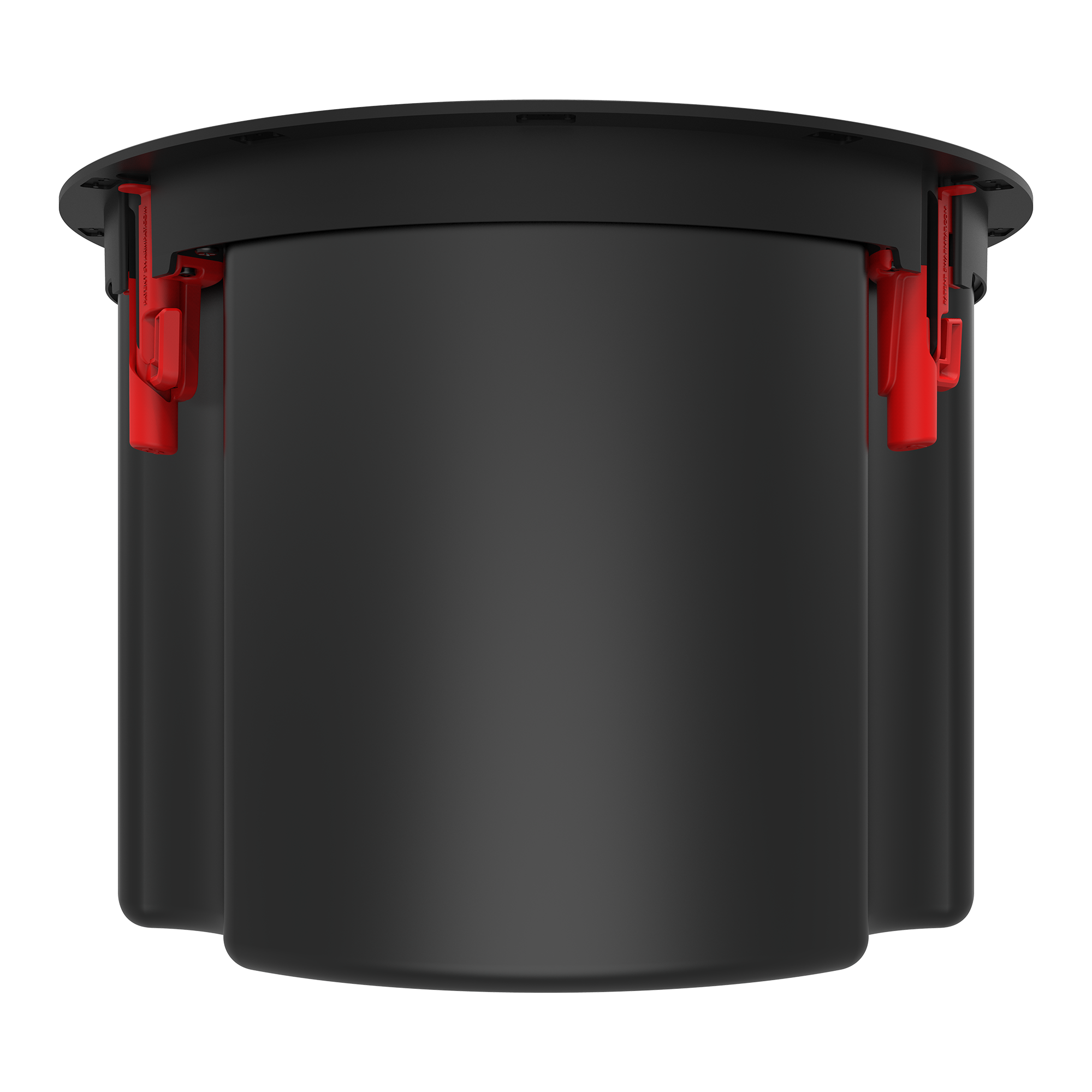

- Exclusive patented Sky Hook® Pro System
- Phoenix connector
- IPX5 Rated

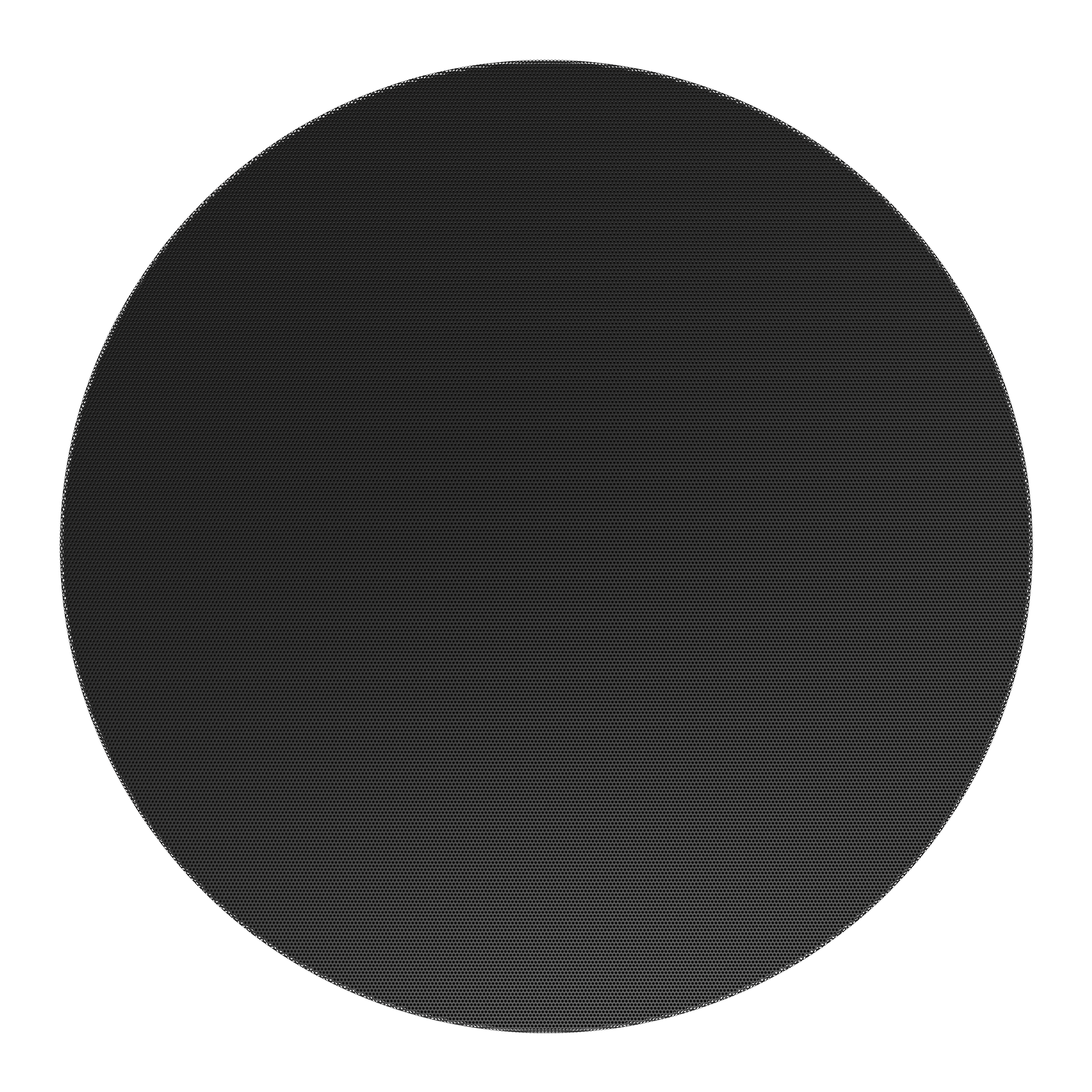

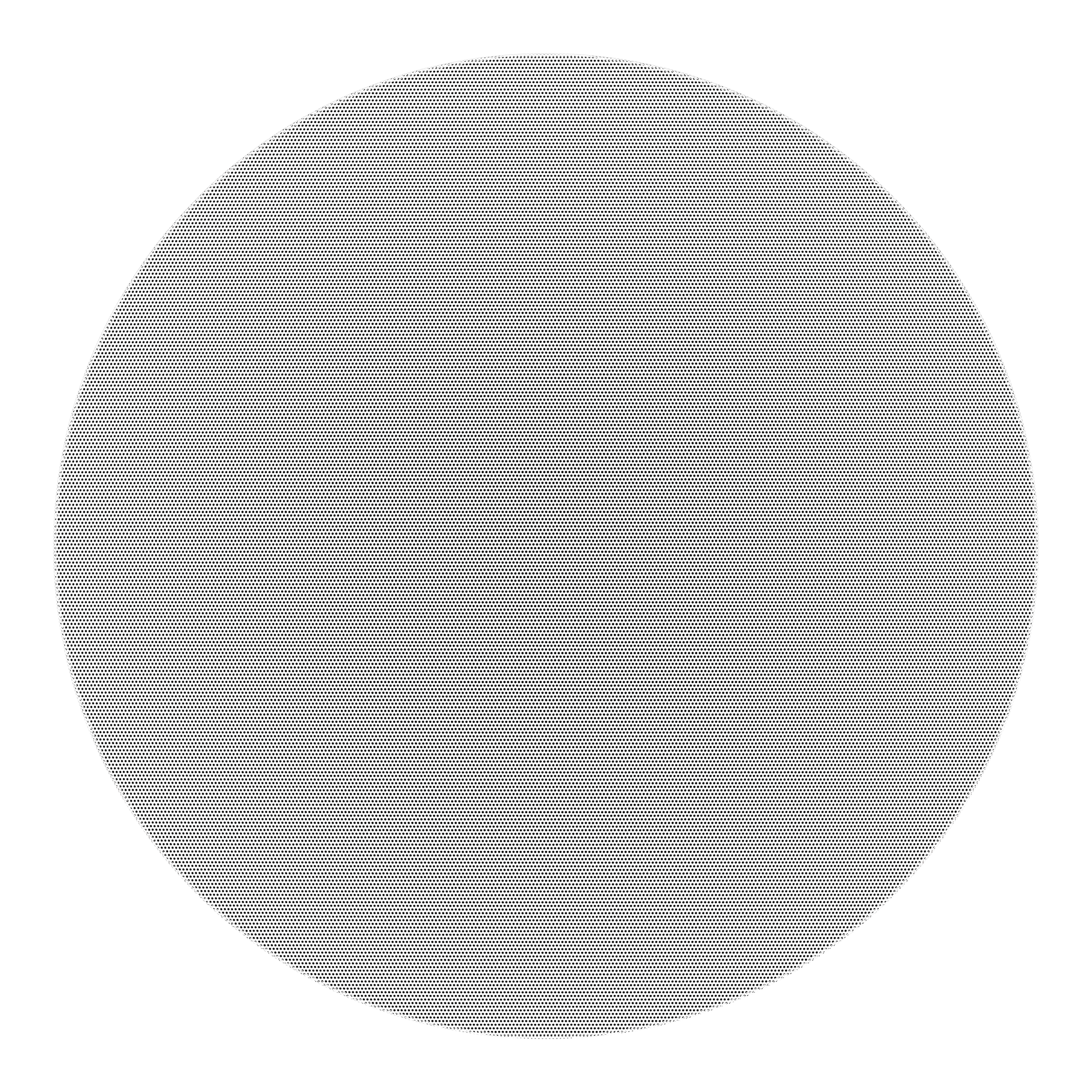

- Paintable black and white grilles included
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Specifications
Key Product Specifications
| FREQUENCY RESPONSE | 56Hz-20kHz +/- 4dB, 46Hz -10dB |
| POWER HANDLING | 100 watts (21V) 50Hz-10kHz (400 watts peak) |
| CALC. MAX. CONT. OUTPUT | 109dB |
| SENSITIVITY | 92dB |
| COVERAGE | 100° +/- 20° 1kHz-20kHz |
| DIRECTIVITY INDEX | 7dB +/- 1.5dB 800Hz-20kHz |
| NOMINAL IMPEDANCE | 8 ohms 4.2 ohms at 150Hz minimum |
| ACOUSTIC CROSSOVER | 2kHz |
| TRANSDUCERS | 8” woofer and 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge |
| ENCLOSURE MATERIAL | All Weather Abs Plastic, Paintable; Metal Can |
| ENCLOSURE TUNING | Vented via 3 folded Tractrix ports |
| INPUT CONNECTORS | 4 pin euro block |
| TRANSFORMER TAPS | 70V: 100W, 50W, 25W,12.5W and 100V: 100W, 50W, 25W and Bypass position: 8 ohms nominal |
| CUTOUT DIMENSION | 12.5" |
| MOUNTING DEPTH | 10.313" |
| OVERALL DEPTH | 10.375" |
| OVERALL WIDTH | 13.625" |
| THRU HOLE WIDTH | 12.313" |
| WEIGHT | 17 lbs |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
Klipsch PIC-800-T Spec Sheet
.
Product Manual
Download the Product Manual for PIC-800-T 8” PROFESSIONAL IN-CEILING SPEAKER here:
Klipsch PIC-800 LIT
.
