PIC-650-T

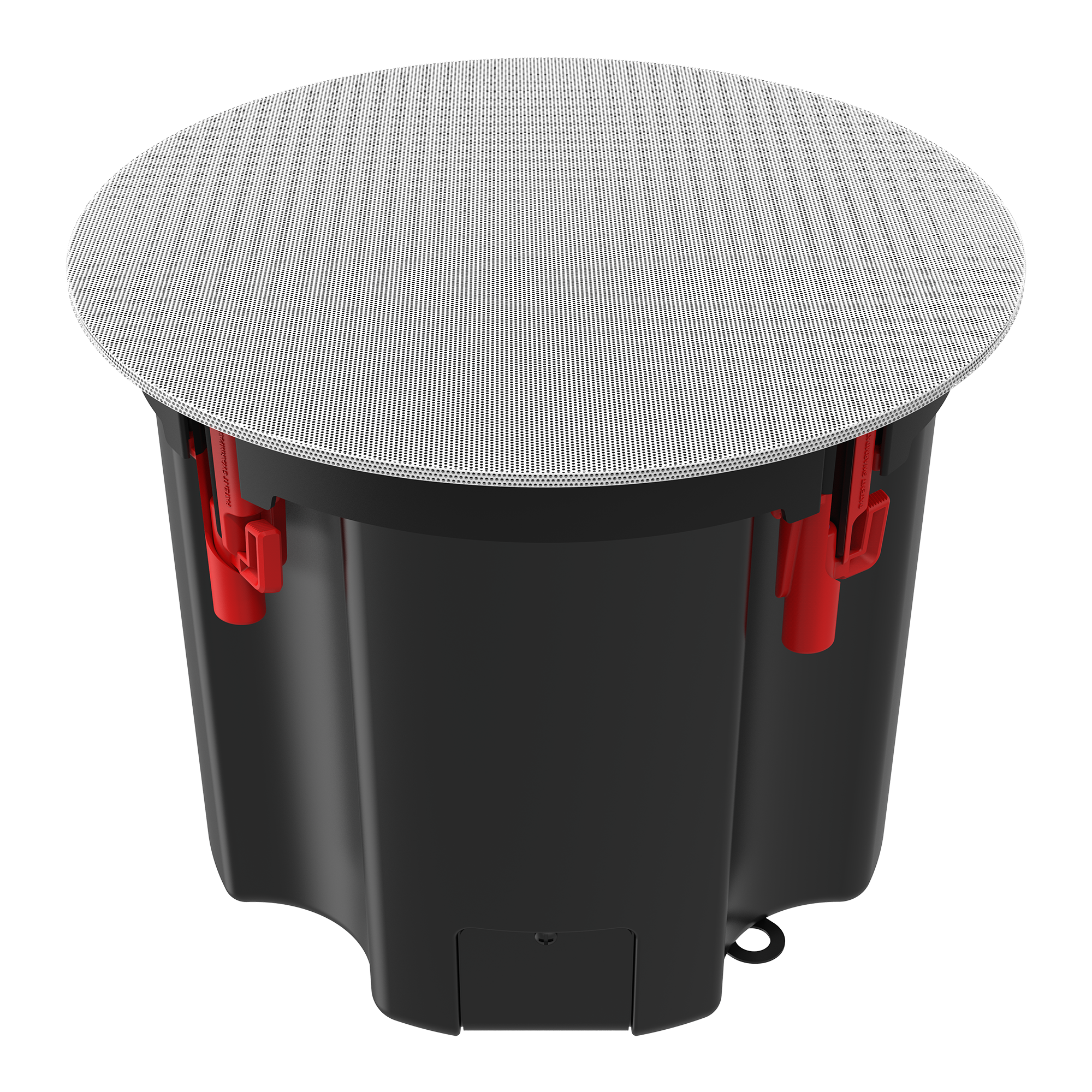

6.5” PROFESSIONAL IN-CEILING SPEAKER
Features:
- All-New Tractrix® Hyperfold™ Port
- 1” Titanium compression driver
- Exclusive patented Sky Hook® Pro System
- Phoenix connector
- IPX5 Rated

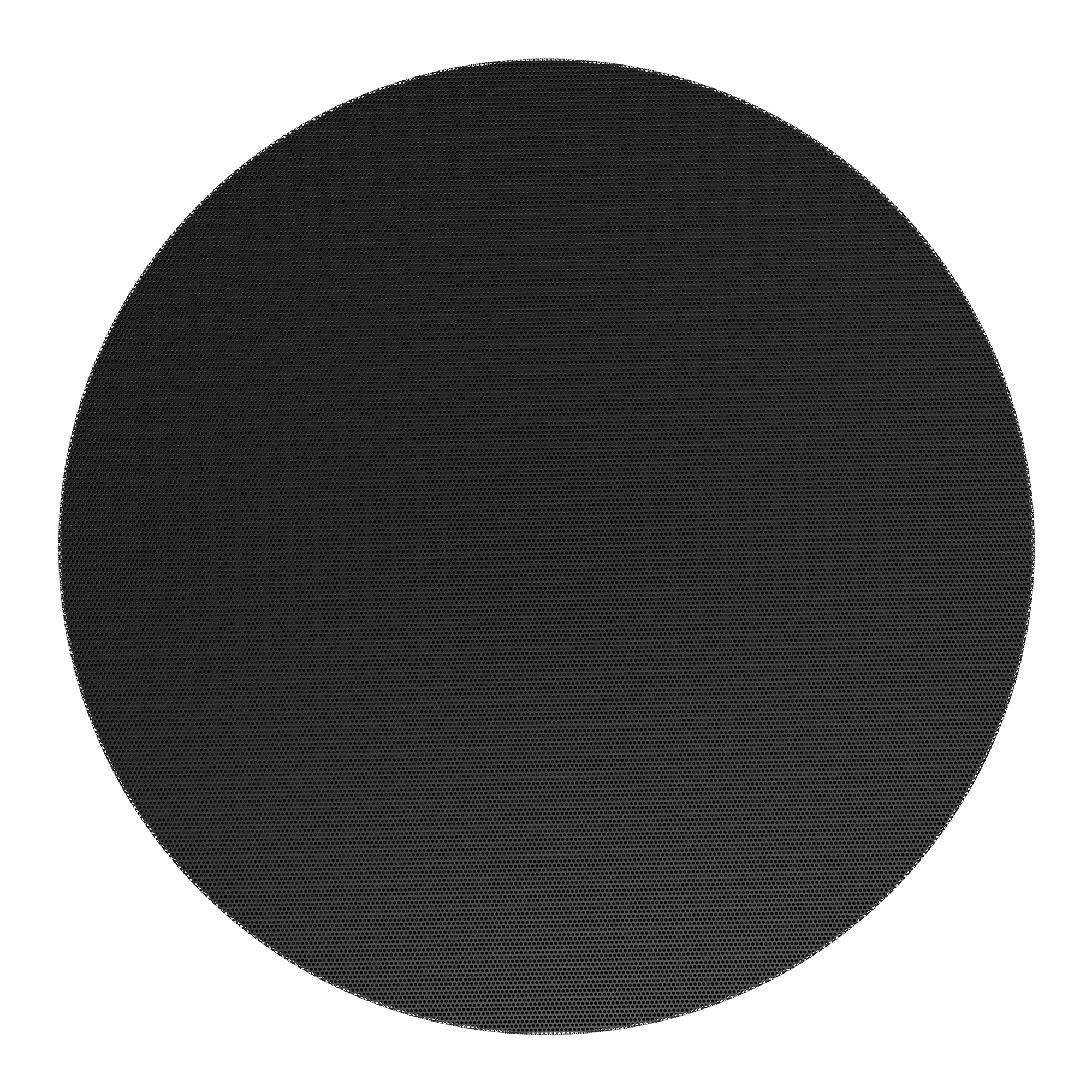

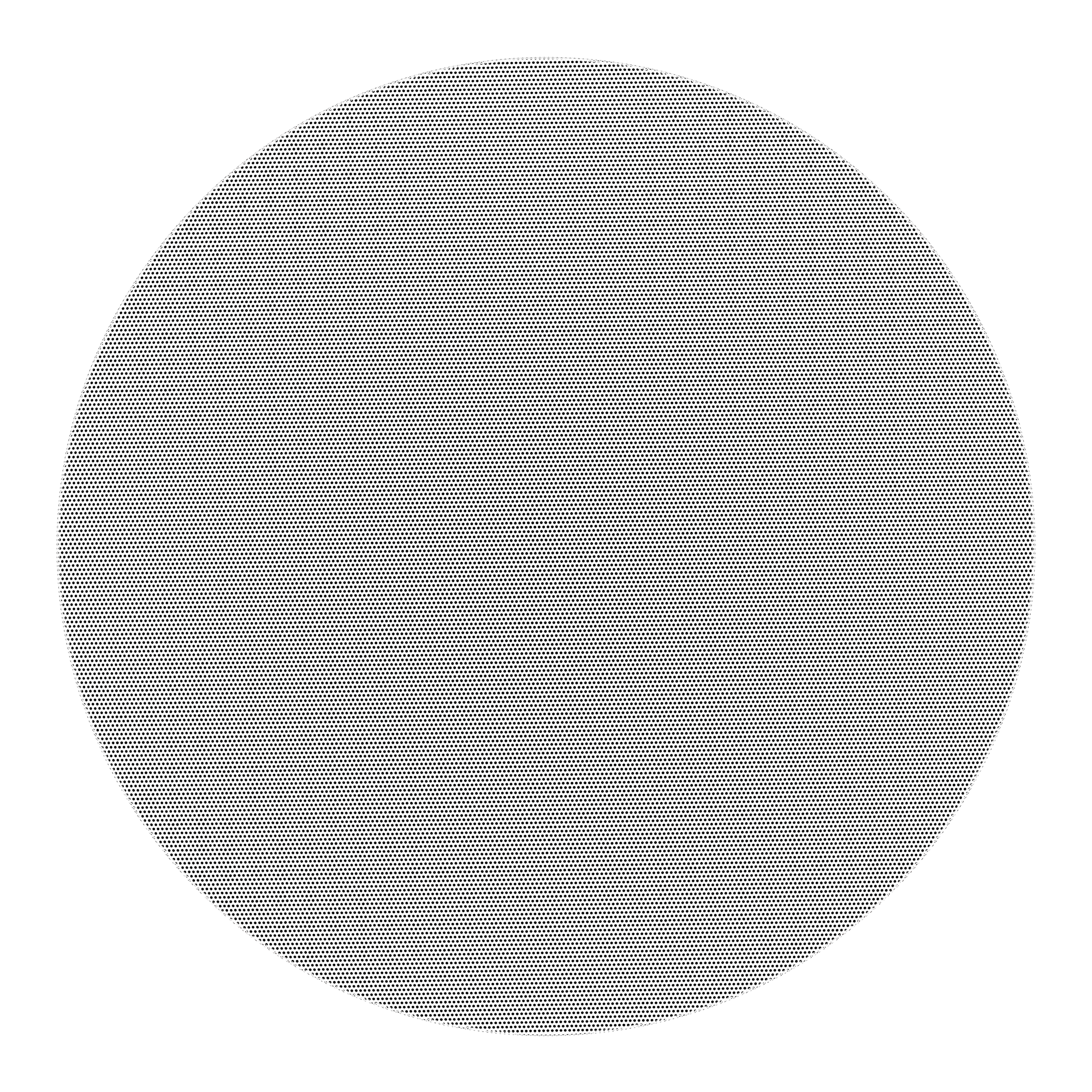

- Paintable black and white grilles included
Specifications
Key Product Specifications
| FREQUENCY RESPONSE | 60Hz-20kHz +/- 4dB, 50Hz -10dB |
| POWER HANDLING | 80 watts (19V) 53Hz-10kHz (320 watts peak) |
| CALC. MAX. CONT. OUTPUT | 106dB |
| SENSITIVITY | 90dB |
| COVERAGE | 100° +/- 20° 900Hz-20kHz |
| DIRECTIVITY INDEX | 7dB +/- 1.5dB 800Hz-20kHz |
| NOMINAL IMPEDANCE | 8 ohms 4.5 ohms at 160Hz minimum |
| ACOUSTIC CROSSOVER | 2kHz |
| TRANSDUCERS | 6.5” woofer and 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge |
| ENCLOSURE MATERIAL | All Weather Abs Plastic, Paintable; Metal Can |
| ENCLOSURE TUNING | Vented via 3 folded Tractrix ports |
| INPUT CONNECTORS | 4 pin euro block |
| TRANSFORMER TAPS | 70V: 60W, 30W, 15W, 7.5W and 100V: 60W, 30W, 7.5W and Bypass position: 8 ohms nominal |
| CUTOUT DIMENSION | 10.125" |
| MOUNTING DEPTH | 9.438" |
| OVERALL DEPTH | 9.563" |
| OVERALL WIDTH | 11.25" |
| THRU HOLE WIDTH | 10" |
| WEIGHT | 11 lbs |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
Klipsch PIC-650-T Spec Sheet
.
Product Manual
Download the Product Manual for PIC-650-T 6.5” PROFESSIONAL IN-CEILING SPEAKER here:
Klipsch PIC-650 LIT
.
