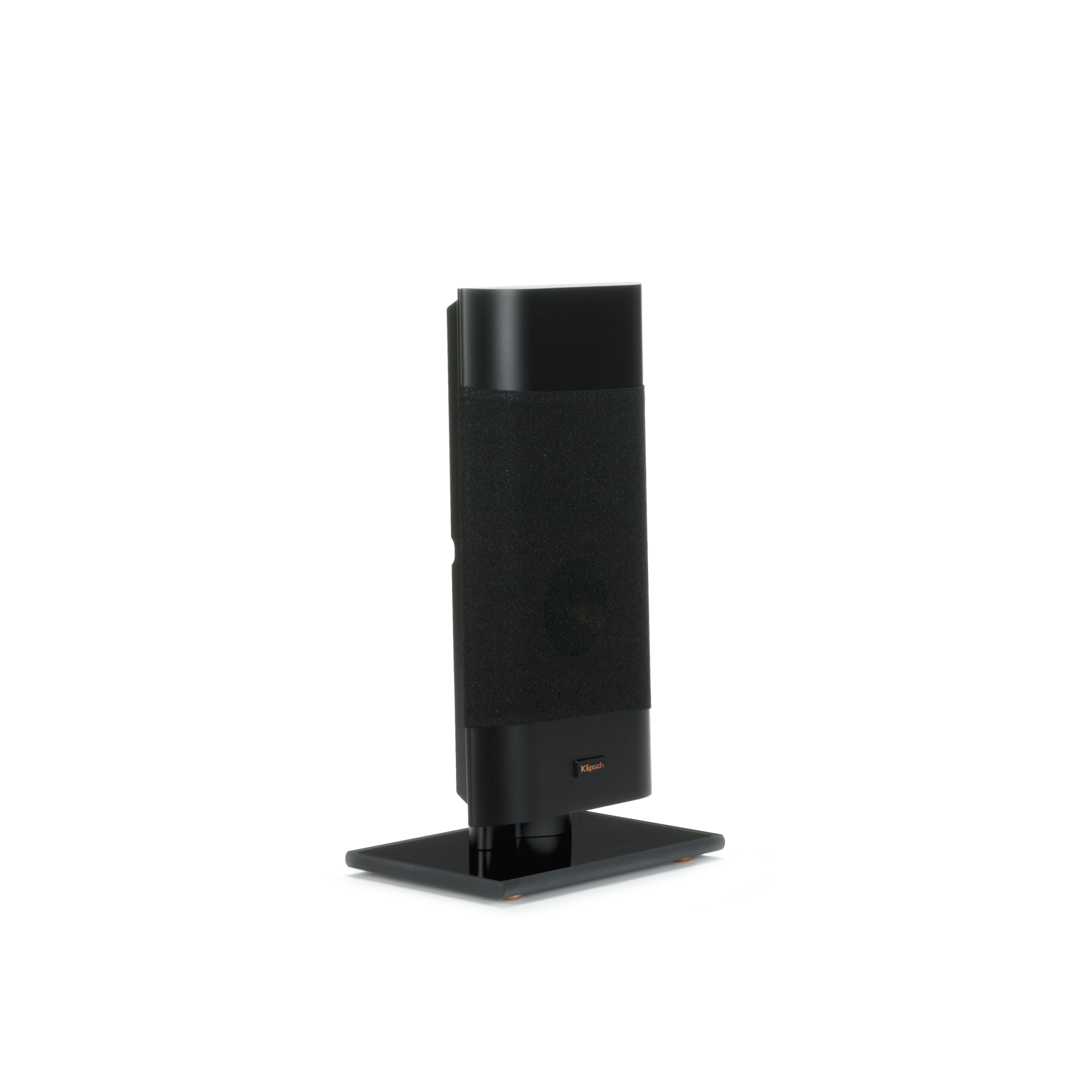

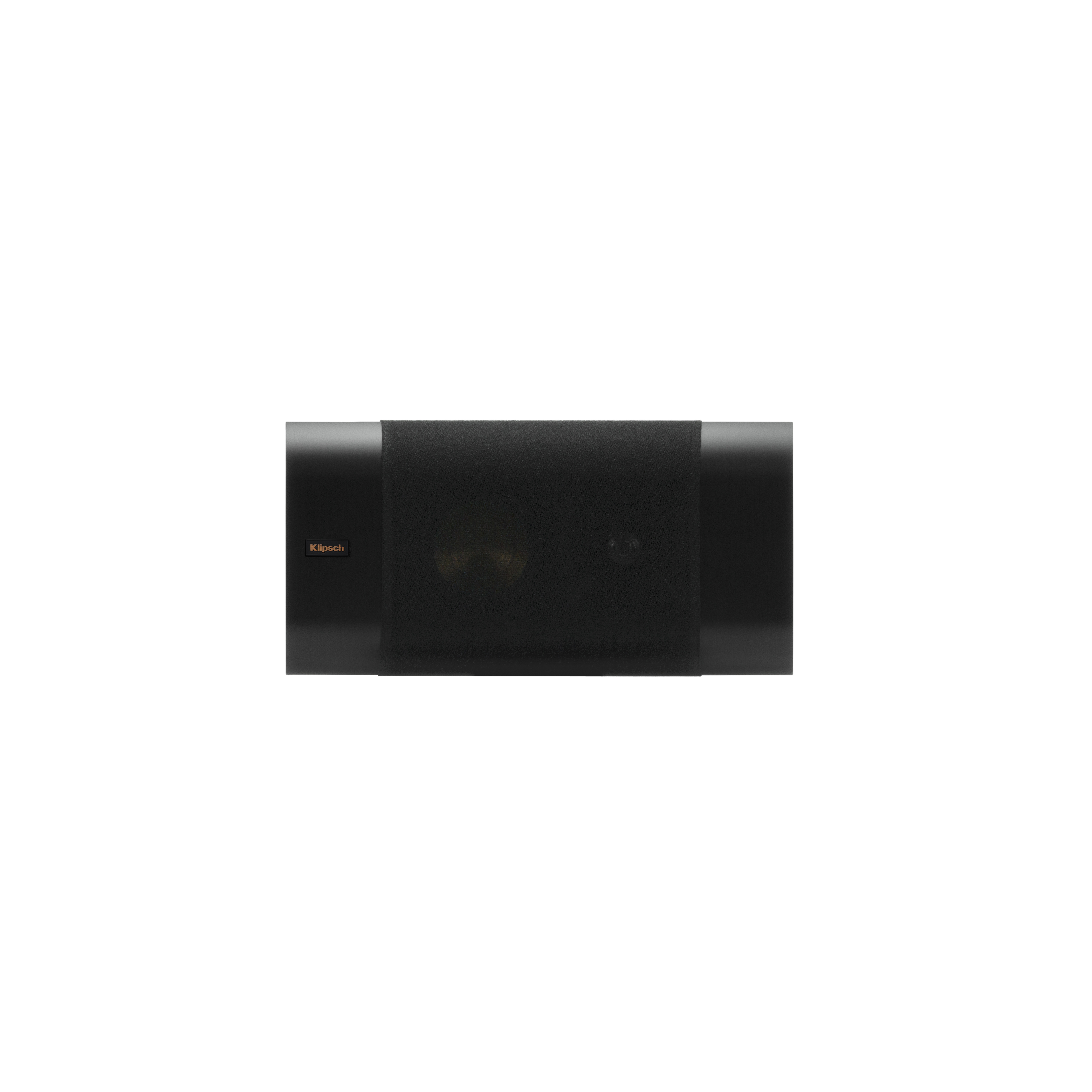

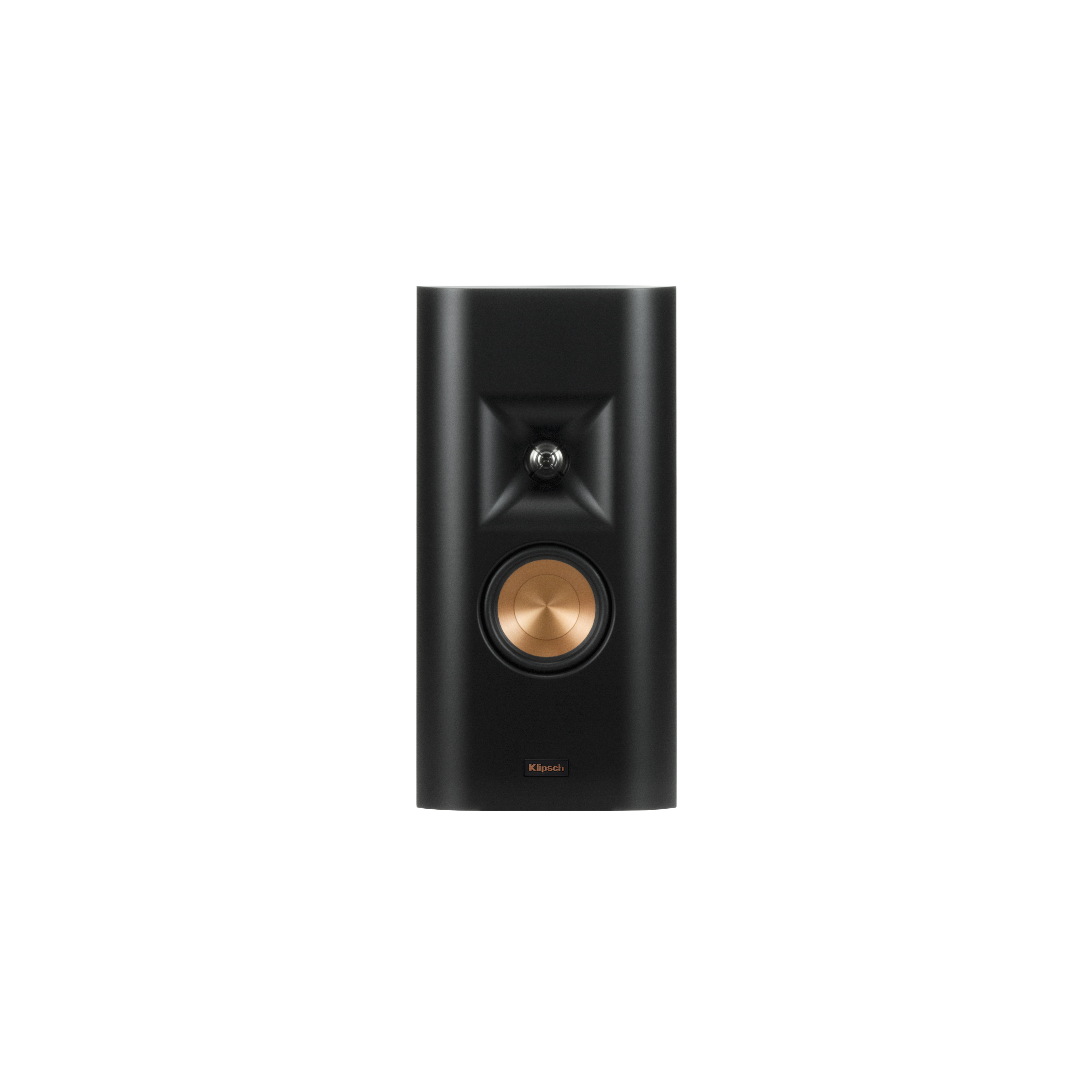

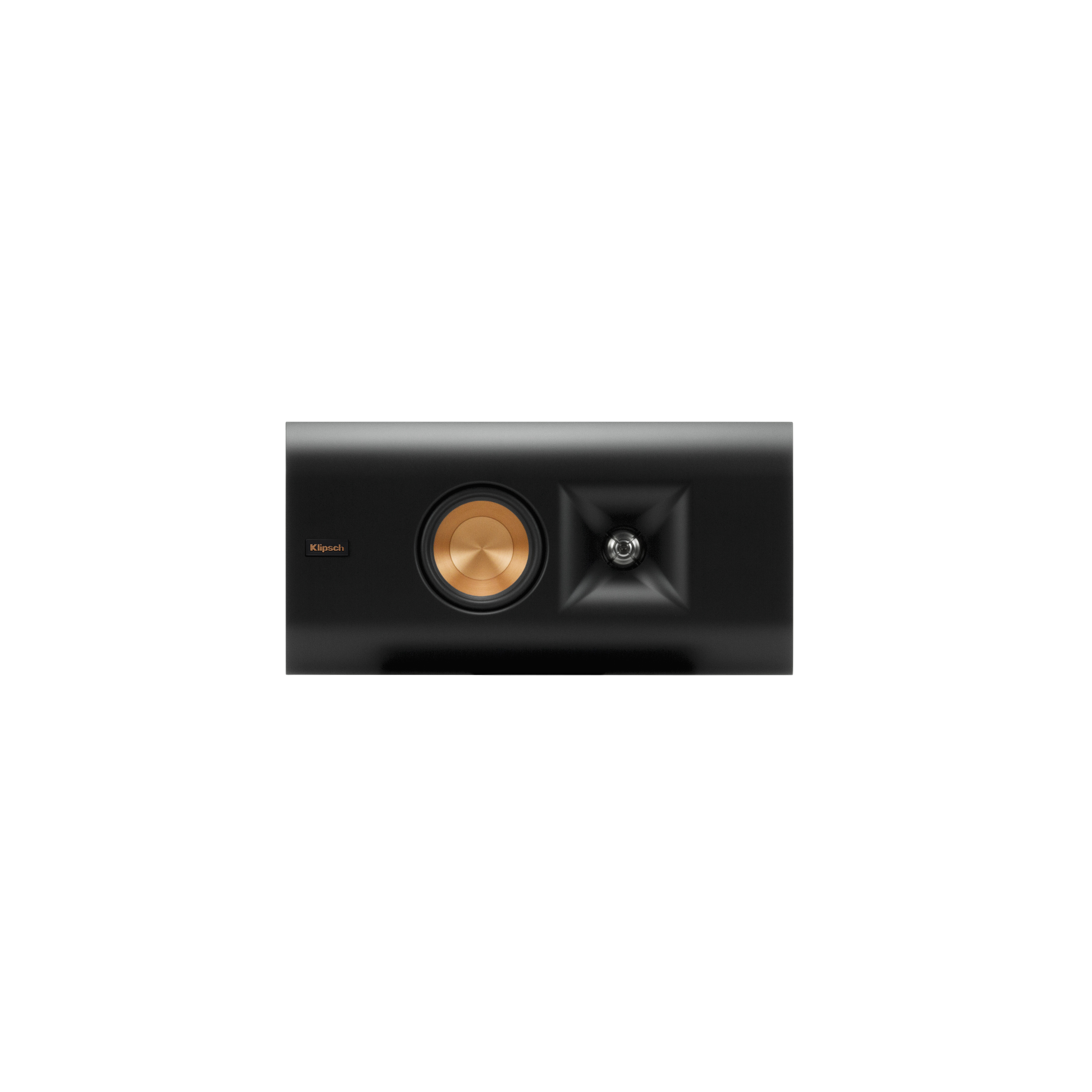

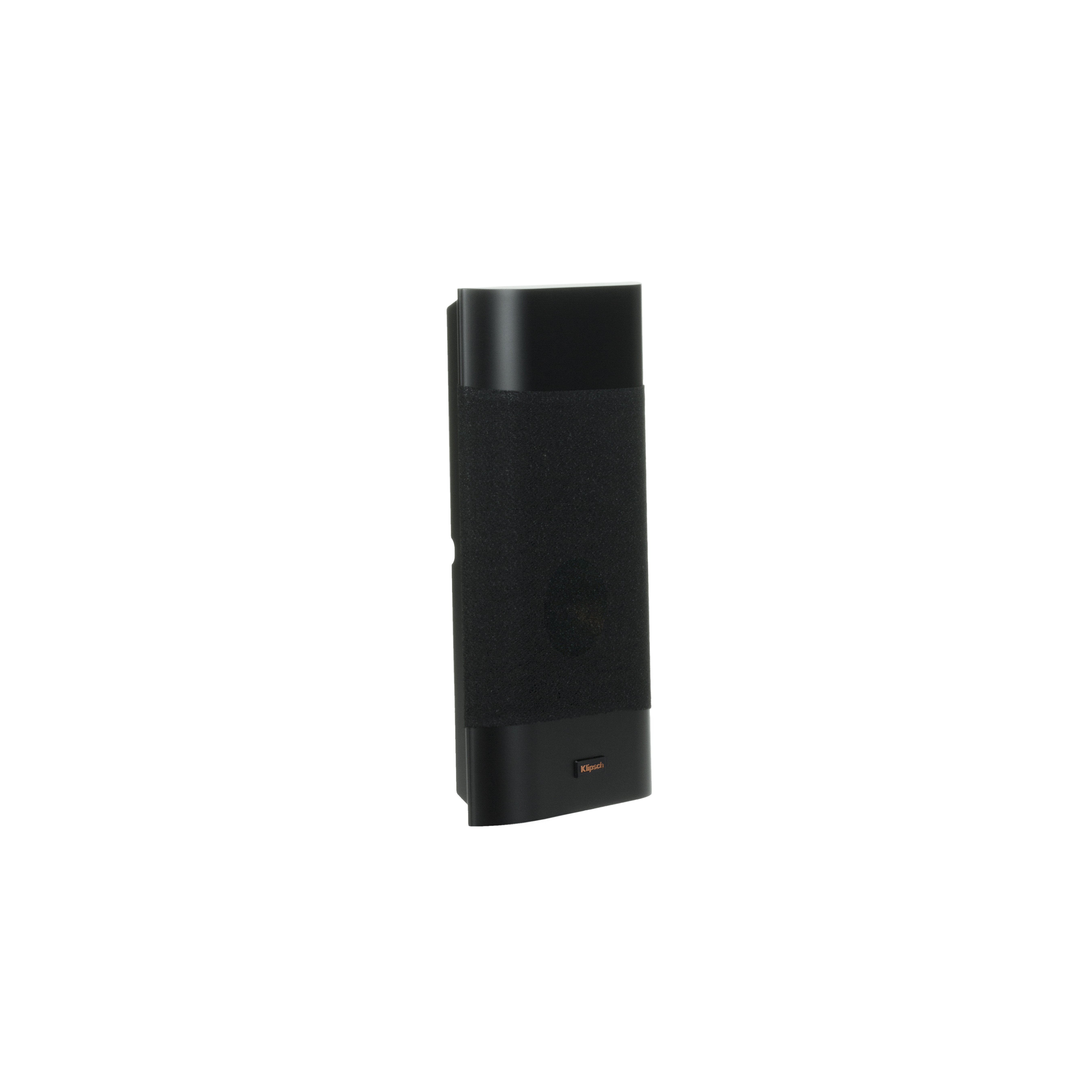

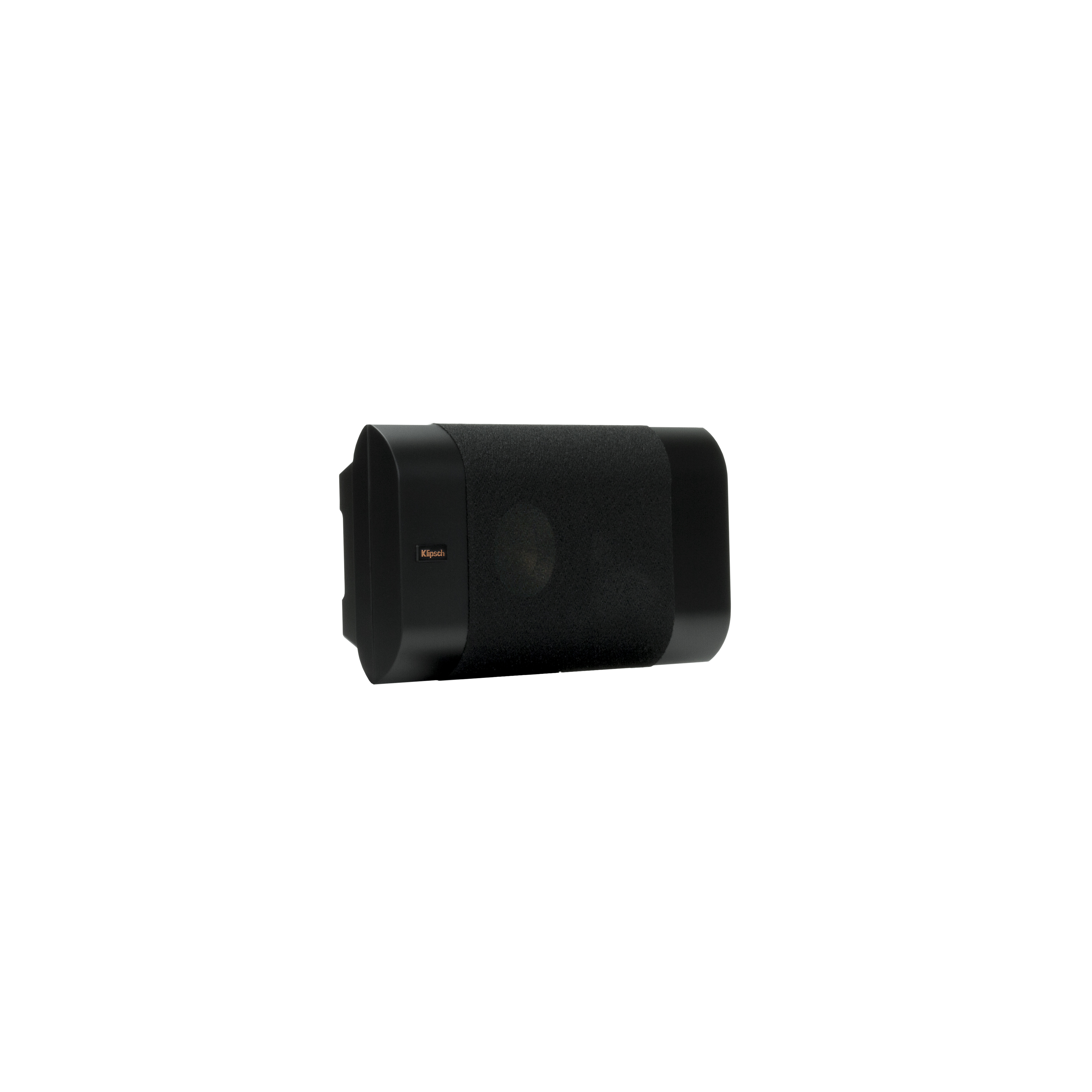

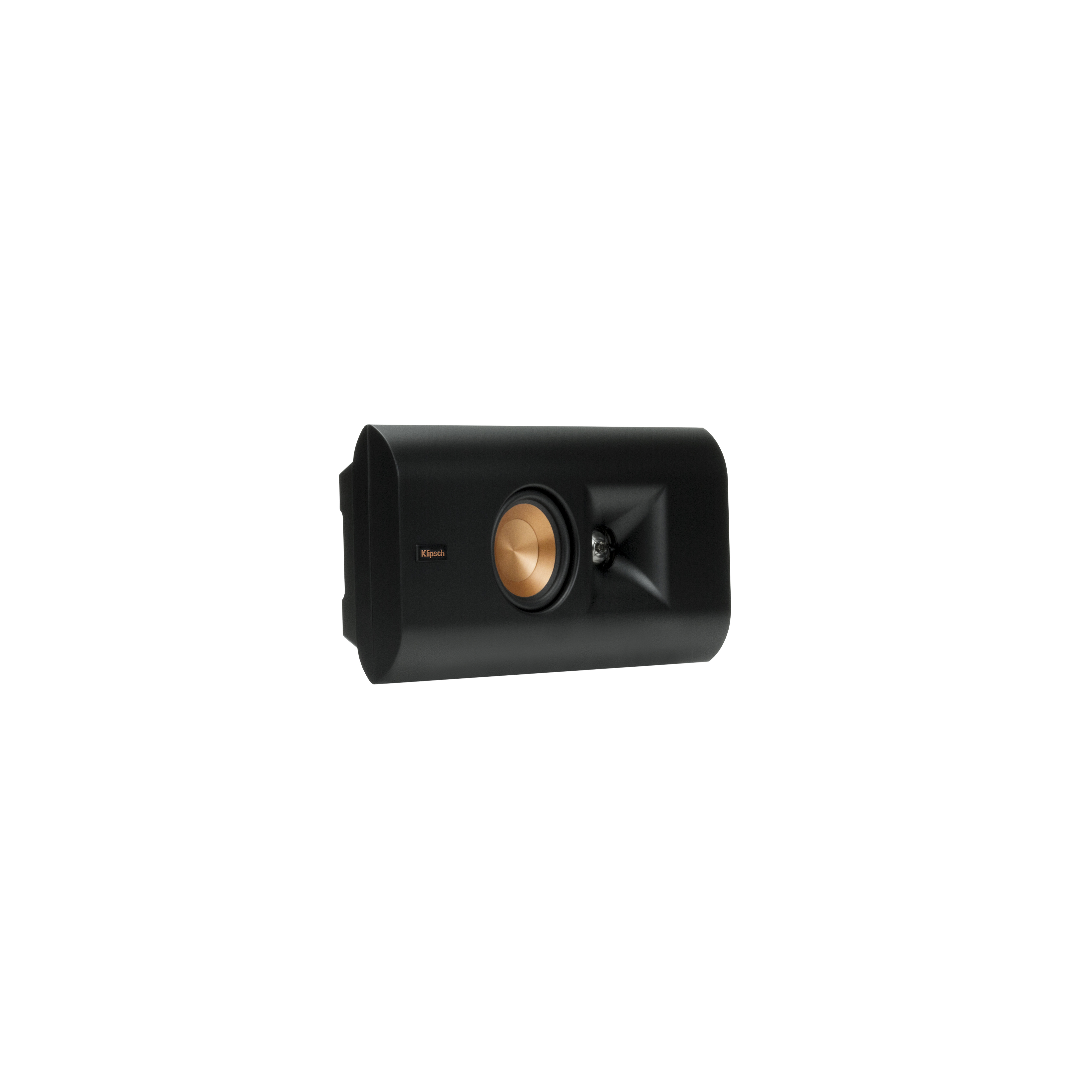

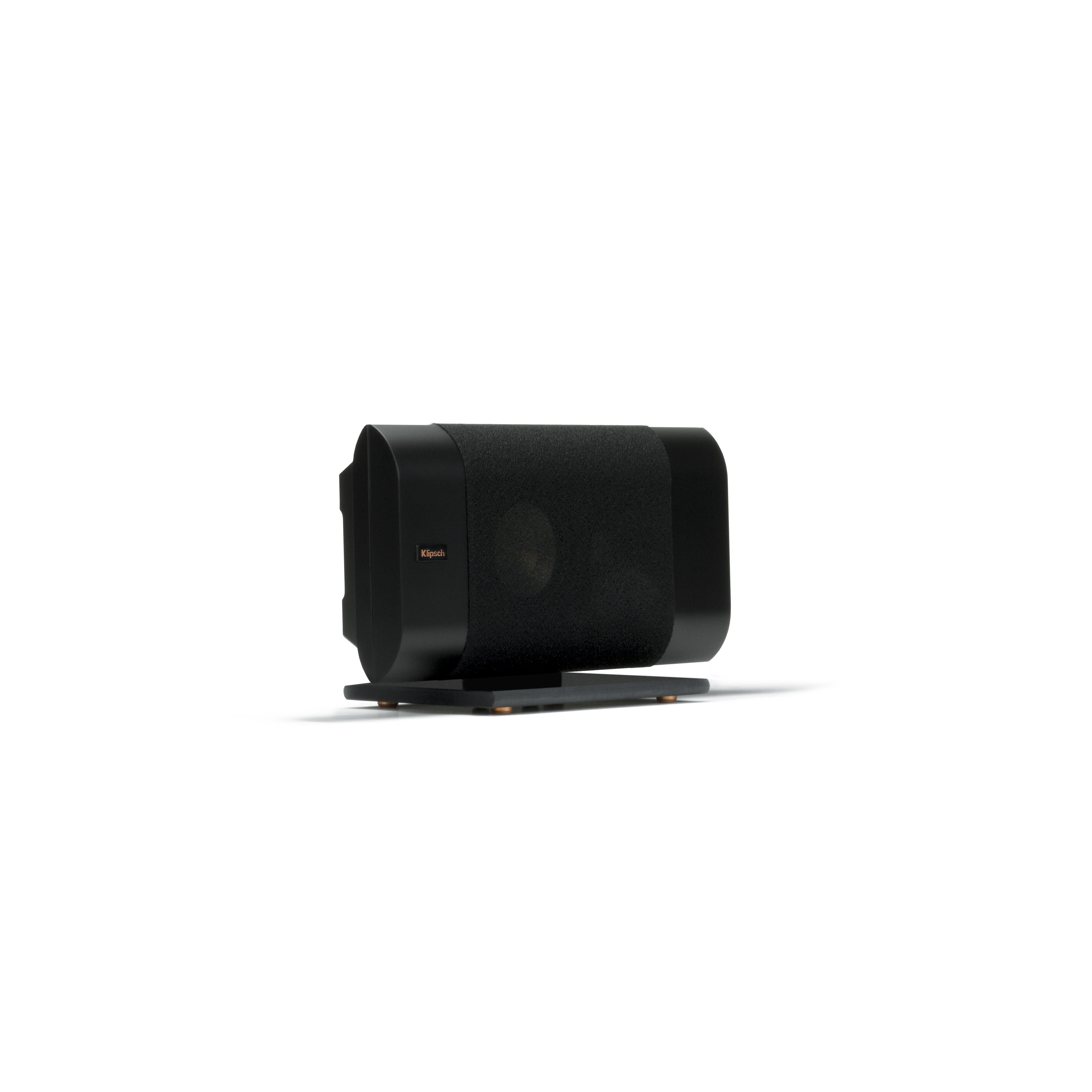

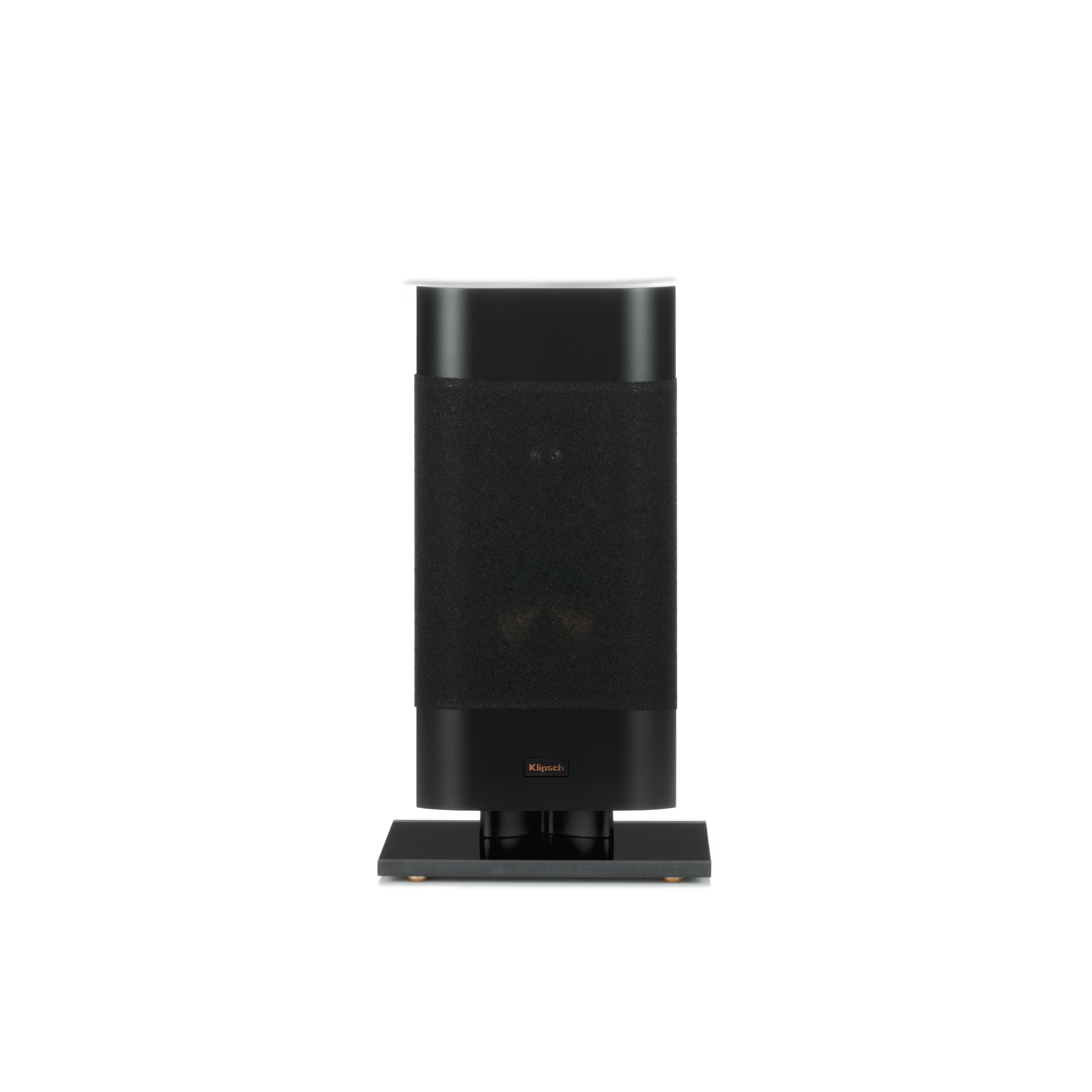

RP-140D
On-Wall Speaker

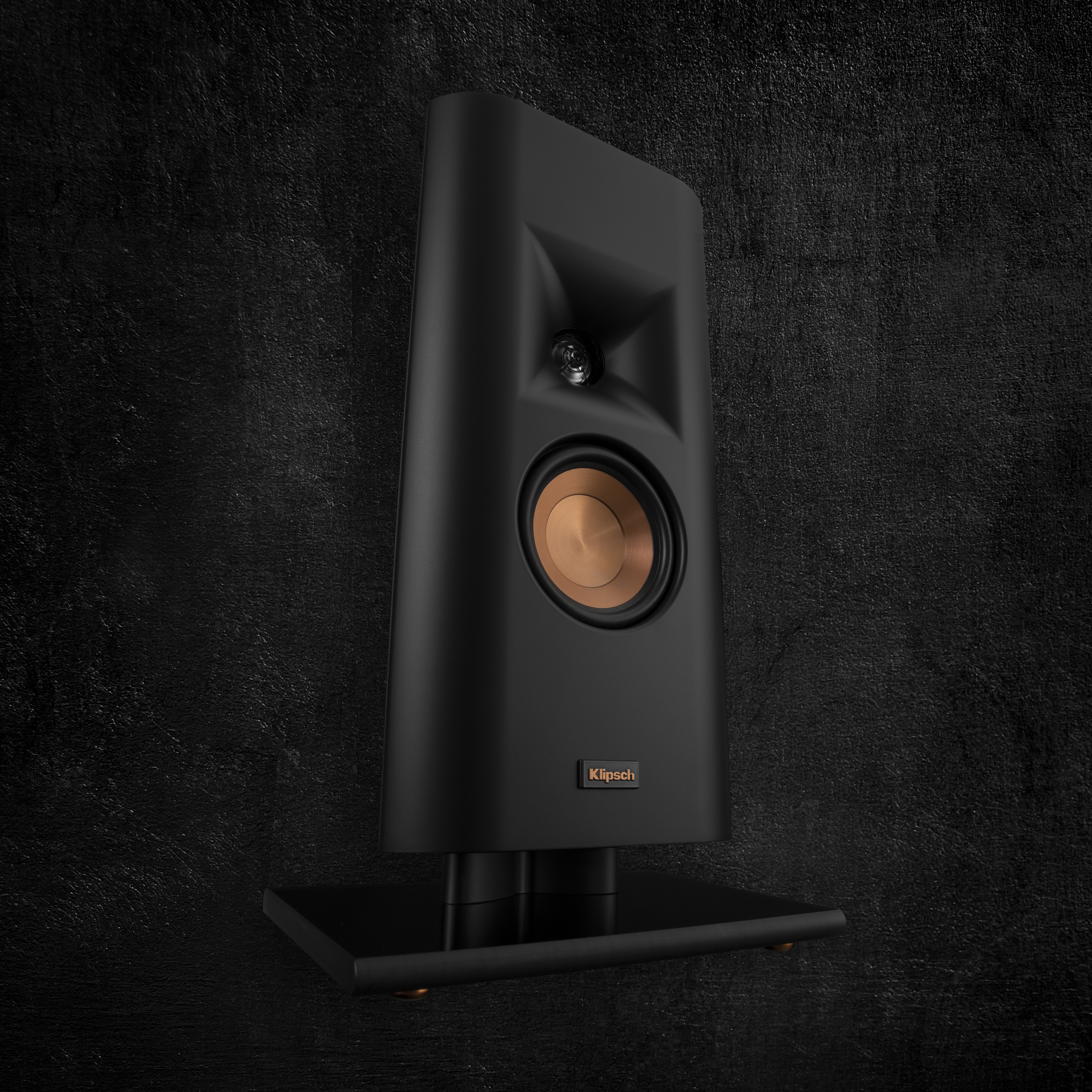

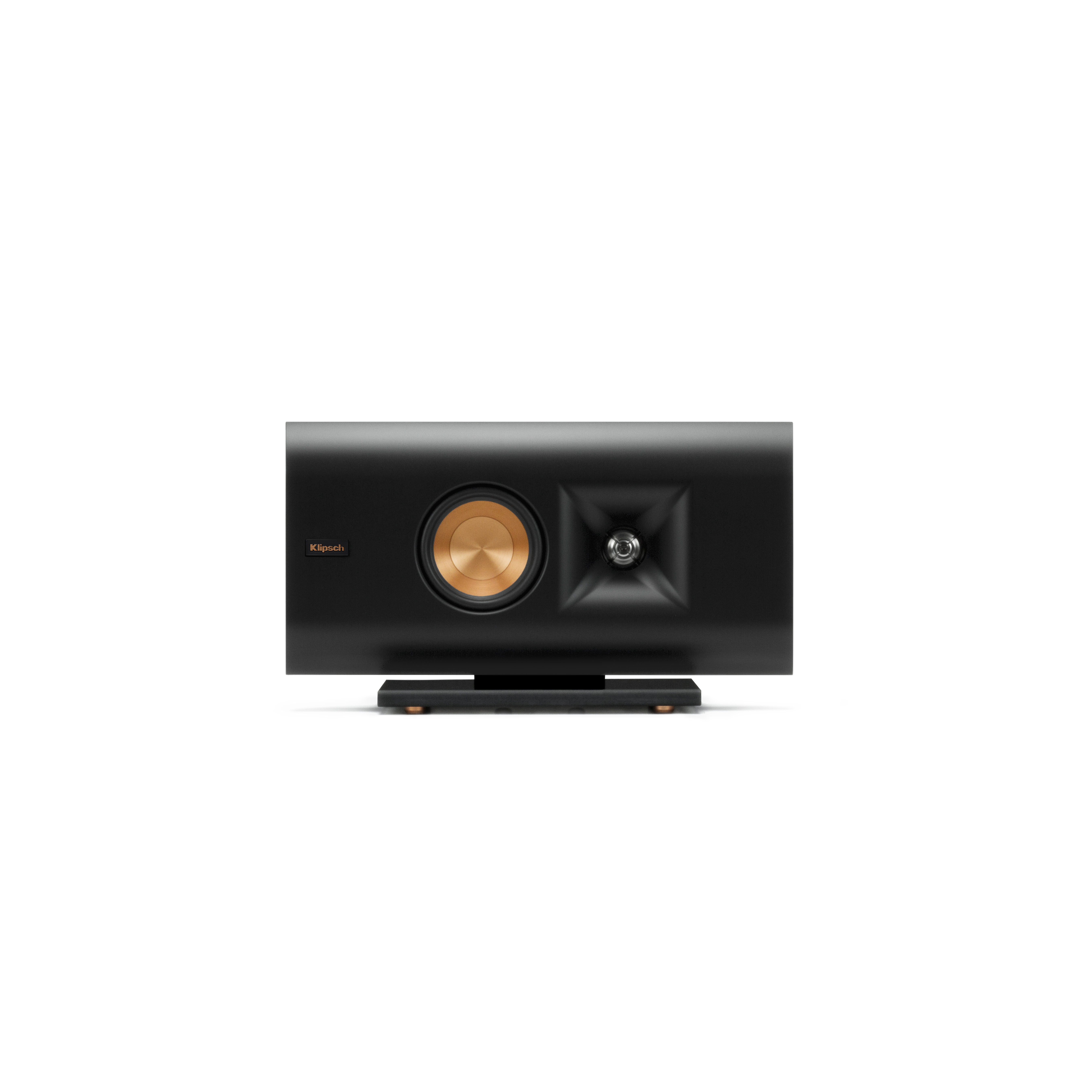

The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.
Specifications
Key Product Specifications
Frequency Response | 69Hz-25kHz +/- 3dB |
Key Product Specifications
Sensitivity | 91dB @ 2.83V / 1m |
Key Product Specifications
Power Handling | 50W / 200W |
Key Product Specifications
Nominal Impedance | 8 Ohms Compatible |
Key Product Specifications
Crossover Frequency | 2200Hz |
Key Product Specifications
High Frequency Driver | 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
Key Product Specifications
Low Frequency Driver | 3.5” (8.89 cm) Cerametallic Cone Woofers |
Key Product Specifications
Enclosure Material | ABS |
Key Product Specifications
Enclosure Type | Bass Reflex |
Key Product Specifications

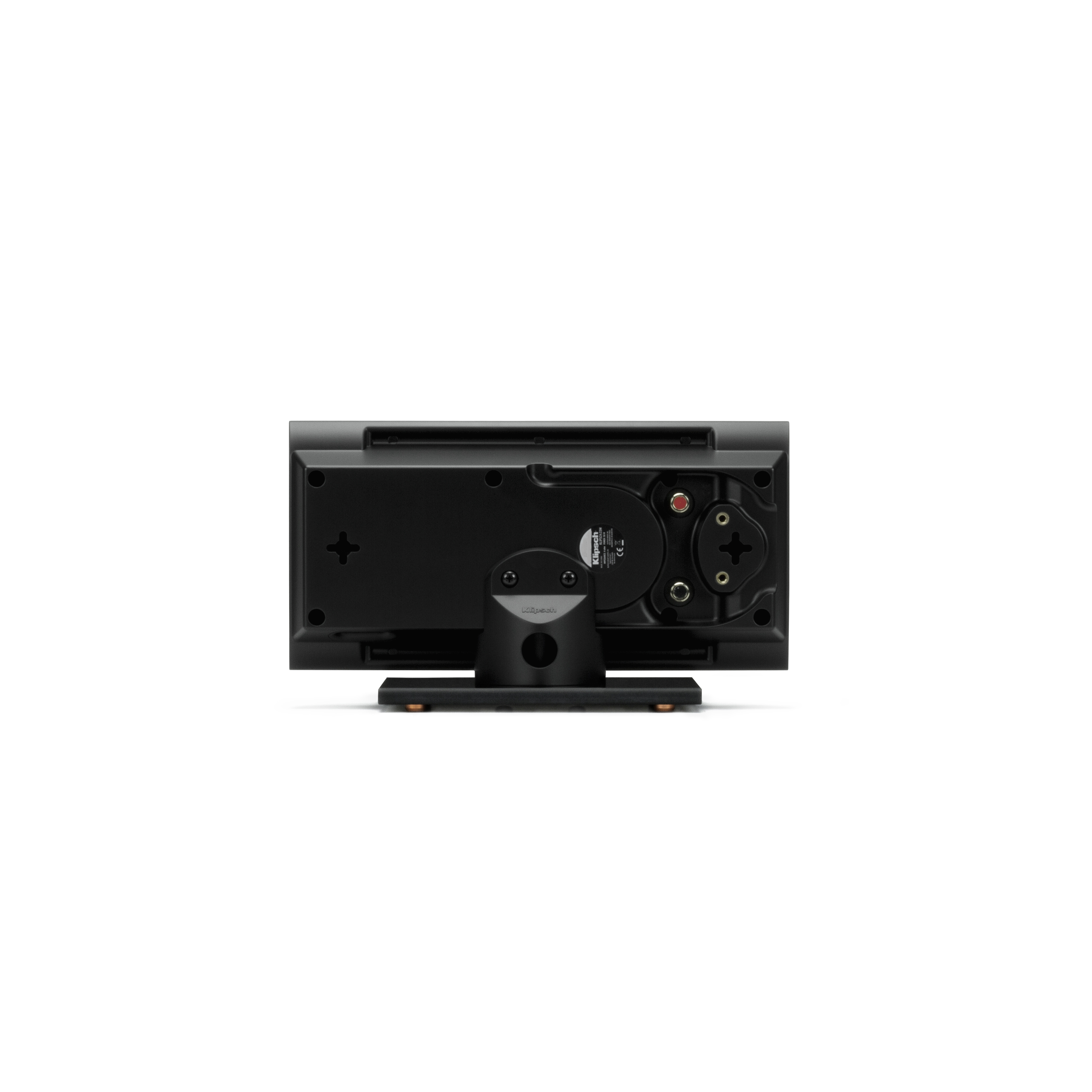

Inputs | Single Binding Posts |
Key Product Specifications
Height | 12" (30.48 cm) |
Key Product Specifications
Width | 6" (15.24 cm) |
Key Product Specifications
Depth | 2.4" (6.10 cm) |
Key Product Specifications
Weight | 3.75 lbs (1.7 kg) |
Key Product Specifications
Finish | Matte Black Paint |
Key Product Specifications
Built From | 2017 |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
RP 140 D Spec Sheet
.
Product Manual
Download the Product Manual for RP-140D On-Wall Speaker here:
RP Designer On Wall Manual V02
.
